Durable Functions

Durable Functions

---

Why Durable Functions?

When using Azure functions we usually deal with a strict stateless model. Each function execution is independent from other executions. This is a key factor why it is so easy to scale functions.

However using Azure functions we are limited:

• An Azure function has to complete within a certain time frame (e.g. max 10min for Consumption plan)
• We cannot model complex workflows or long-running operations.

---

Consider Durable Functions when

• You need to coordinate the execution of multiple functions and manage complex control flow and error handling.
• Your application requires stateful execution and the ability to pause, resume, or retry workflows.
• Human interaction, such as approvals or notifications, is an integral part of your application’s workflow.

---

Building blocks

• Orchestrator
  • Orchestrates the function execution.
  • Can call other functions. The output can be stored in local variables.
  • Can be long-running. Lifespan of an orchestrator function can be from milliseconds to never-ending.
• Activity
  • Are the units of work within a durable functions app.
  • Are called by an orchestrator.
• External Event
  • Are events triggered by any external client.
  • Supports bindings and HTTP API.

---

Orchestrator sample

[FunctionName("HelloCities")]
public static async Task<List<string>> Run(
    [OrchestrationTrigger]
    IDurableOrchestrationContext context)
{
  var outputs = new List<string>();

  outputs.Add(await context
    .CallActivityAsync<string>("SayHello", "Tokyo"));
  outputs.Add(await context
    .CallActivityAsync<string>("SayHello", "Seattle"));
  outputs.Add(await context
    .CallActivityAsync<string>("SayHello", "London"));

  return outputs;
}

---

Activity sample

[FunctionName("SayHello")]
public static string SayHello(
  [ActivityTrigger] IDurableActivityContext helloContext)
{
  string name = helloContext.GetInput<string>();
  return $"Hello {name}!";
}

---

External event sample

[FunctionName("BudgetApproval")]
public static async Task Run(
  [OrchestrationTrigger]
  IDurableOrchestrationContext context)
{
  bool approved = await context
    .WaitForExternalEvent<bool>("Approval");
  if (approved)
  {
    // approval granted - do the approved action
  }
  else
  {
    // approval denied - send a notification
  }
}

---

Raise an external event

via orchestration client binding:

[FunctionName("ApprovalQueueProcessor")]
public static async Task Run(
    [QueueTrigger("approval-queue")] string instanceId,
    [DurableClient] IDurableOrchestrationClient client)
{
  await client
    .RaiseEventAsync(instanceId, "Approval", true);
}

---

Raise an external event (2)

via HTTP API:

POST /runtime/webhooks/durabletask/instances/MyInstanceId/raiseEvent/Approval&code=XXX
Content-Type: application/json

"true"

---

Orchestrator Function execution

[FunctionName("HelloCities")]
public static async Task<List<string>> Run(
    [OrchestrationTrigger]
    IDurableOrchestrationContext context)
{
  // Every time the orchestrator function is started or resumed
  // it will start from scratch at the beginning.

  // Local variables will be created and assigned each time the function runs.
  var outputs = new List<string>();
  var count = 0;

  // When we await another function, the orchestrator stops the execution.
  // When the other function finishes, the orchestrator will run from the beginning
  // When it reaches the call of the executed function, the result will be used
  // instead of calling the function again
  // and the orchestrator function continues with the next steps.
  outputs.Add(await context
    .CallActivityAsync<string>("SayHello", "Tokyo"));
  count++;

  return outputs;
}

---

Orchestrator function constraints

• Orchestrator functions will be replayed multiple times from the beginning.
• Therefore orchestrator functions need to be deterministic - they need to produce the same result every time they are being called.
• We only can use deterministic APIs inside orchestrator functions to ensure this. A deterministic API is an API that always returns the same value given the same input.
• Things to avoid:
  • DateTime.Now
  • Guid.NewGuid()
  • Random numbers
• Avoid using static variables and environment variables in orchestrator functions because their values can change over time, resulting in nondeterministic runtime behavior.
• Orchestrator code must never start any async operation except those defined by the orchestration trigger’s context object. For example, never use Task.Run, Task.Delay, and HttpClient.SendAsync.

---

Durable Function Patterns

The primary use case for Durable Functions is simplifying complex, stateful coordination requirements in serverless applications. We will have a look at typical application patterns that can benefit from Durable Functions.

---

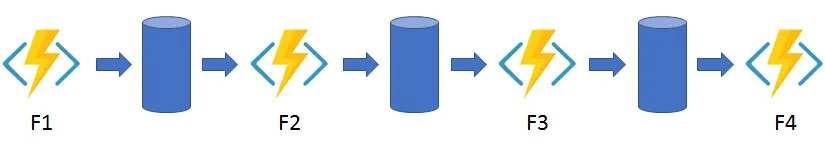

Function chaining

A sequence of function has to execute in a specific order. The output of one function execution acts as input of the following function.

---

[FunctionName("Chaining")]
public static async Task<object> Run(
    [OrchestrationTrigger]
    IDurableOrchestrationContext context)
{
    try
    {
        var x = await context.CallActivityAsync<object>(
          "F1", null);
        var y = await context.CallActivityAsync<object>(
          "F2", x);
        var z = await context.CallActivityAsync<object>(
          "F3", y);
        return  await context.CallActivityAsync<object>(
          "F4", z);
    }
    catch (Exception)
    {
        // Error handling
    }
}

---

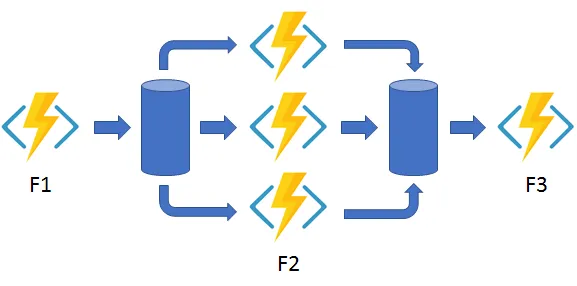

Fan out / fan in

Execute multiple functions in parallel and then wait for all functions to finish.

---

[FunctionName("FanOutFanIn")]
public static async Task Run(
  [OrchestrationTrigger] IDurableOrchestrationContext context)
{
    var parallelTasks = new List<Task<int>>();

    // Get a list of N work items to process in parallel.
    object[] workBatch = await context.CallActivityAsync<object[]>("F1", null);
    for (int i = 0; i < workBatch.Length; i++)
    {
        Task<int> task = context.CallActivityAsync<int>("F2", workBatch[i]);
        parallelTasks.Add(task);
    }

    await Task.WhenAll(parallelTasks);

    // Aggregate all N outputs and send the result to F3.
    int sum = parallelTasks.Sum(t => t.Result);
    await context.CallActivityAsync("F3", sum);
}

---

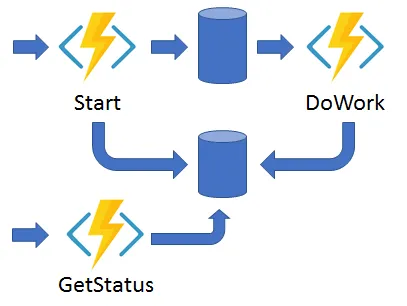

Async HTTP APIs

When dealing with HTTP requests we sometimes have the need to kick off a long-running operation. We often deal with this by having one endpoint for starting the operation and one endpoint for receiving the status or result.

---

> curl -X POST https://myfunc.azurewebsites.net/api/orchestrators/DoWork
HTTP/1.1 202 Accepted
Content-Type: application/json
Location: https://myfunc.azurewebsites.net/runtime/webhooks/durabletask/instances/b79...

{"id":"b79baf67f717453ca9e86c5da21e03ec", ...}

> curl https://myfunc.azurewebsites.net/runtime/webhooks/durabletask
       /instances/b79baf67f717453ca9e86c5da21e03ec -i
HTTP/1.1 202 Accepted
Content-Type: application/json
Location: https://myfunc.azurewebsites.net/runtime/webhooks/durabletask/instances/b79...

{"runtimeStatus":"Running","lastUpdatedTime":"2019-03-16T21:20:47Z", ...}

> curl https://myfunc.azurewebsites.net/runtime/webhooks/durabletask
       /instances/b79baf67f717453ca9e86c5da21e03ec -i
HTTP/1.1 200 OK
Content-Length: 175
Content-Type: application/json

{"runtimeStatus":"Completed","lastUpdatedTime":"2019-03-16T21:20:57Z", ...}

---

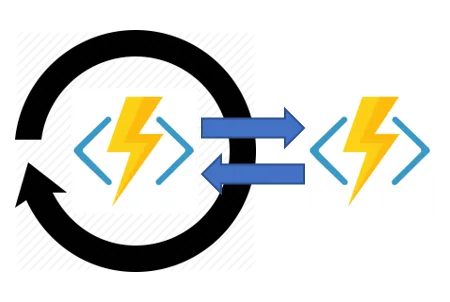

Monitor

Recurring checks of other services.

---

[FunctionName("MonitorJobStatus")]
public static async Task Run(
    [OrchestrationTrigger] IDurableOrchestrationContext context)
{
    int jobId = context.GetInput<int>();
    int pollingInterval = GetPollingInterval();
    DateTime expiryTime = GetExpiryTime();

    while (context.CurrentUtcDateTime < expiryTime)
    {
        var jobStatus = await context.CallActivityAsync<string>("GetJobStatus", jobId);
        if (jobStatus == "Completed")
        {
            // Perform an action when a condition is met.
            await context.CallActivityAsync("SendAlert", jobId);
            break;
        }

        // Orchestration sleeps until this time.
        var nextCheck = context.CurrentUtcDateTime.AddSeconds(pollingInterval);
        await context.CreateTimer(nextCheck, CancellationToken.None);
    }
}

---

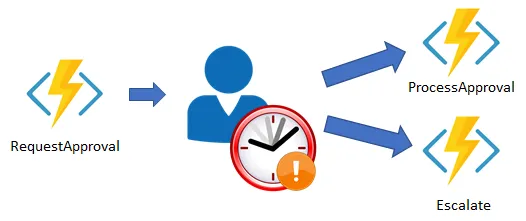

Human interaction

Wait for events (often triggered by human interaction) that might occur much later.

---

[FunctionName("ApprovalWorkflow")]
public static async Task Run(
    [OrchestrationTrigger] IDurableOrchestrationContext context)
{
    await context.CallActivityAsync("RequestApproval", null);
    using (var timeoutCts = new CancellationTokenSource())
    {
        DateTime dueTime = context.CurrentUtcDateTime.AddHours(72);
        Task durableTimeout = context.CreateTimer(dueTime, timeoutCts.Token);

        Task<bool> approvalEvent = context.WaitForExternalEvent<bool>("ApprovalEvent");
        if (approvalEvent == await Task.WhenAny(approvalEvent, durableTimeout))
        {
            timeoutCts.Cancel();
            await context.CallActivityAsync("ProcessApproval", approvalEvent.Result);
        }
        else
        {
            await context.CallActivityAsync("Escalate", null);
        }
    }
}

---

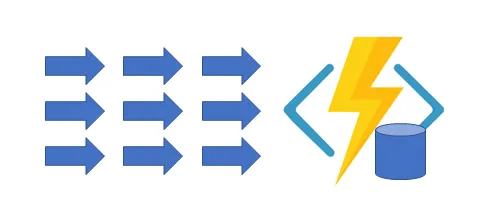

Aggregator

Aggregate data over time in a single entity.

---

[FunctionName("Counter")]
public static void Counter([EntityTrigger] IDurableEntityContext ctx)
{
    int currentValue = ctx.GetState<int>();
    switch (ctx.OperationName.ToLowerInvariant())
    {
        case "add":
            int amount = ctx.GetInput<int>();
            ctx.SetState(currentValue + amount);
            break;
        case "reset":
            ctx.SetState(0);
            break;
        case "get":
            ctx.Return(currentValue);
            break;
    }
}

---

Alternative implementation:

public class Counter
{
    [JsonProperty("value")]
    public int CurrentValue { get; set; }

    public void Add(int amount) =>
      this.CurrentValue += amount;

    public void Reset() => this.CurrentValue = 0;

    public int Get() => this.CurrentValue;

    [FunctionName(nameof(Counter))]
    public static Task Run(
      [EntityTrigger] IDurableEntityContext ctx)
        => ctx.DispatchAsync<Counter>();
}

---

[FunctionName("EventHubTriggerCSharp")]
public static async Task Run(
    [EventHubTrigger("device-sensor-events")] EventData eventData,
    [DurableClient] IDurableEntityClient entityClient)
{
    var metricType = (string)eventData.Properties["metric"];
    var delta = BitConverter.ToInt32(
      eventData.Body, eventData.Body.Offset);

    // The "Counter/{metricType}" entity is created on-demand.
    var entityId = new EntityId("Counter", metricType);
    await entityClient.SignalEntityAsync(entityId, "add", delta);
}
