Parallel Programming - Processes

Parallel Programming

Section titled “Parallel Programming”

Processes

Section titled “Processes”

Process

Section titled “Process”

A process is a program being executed.

Processes are managed by the operating system.

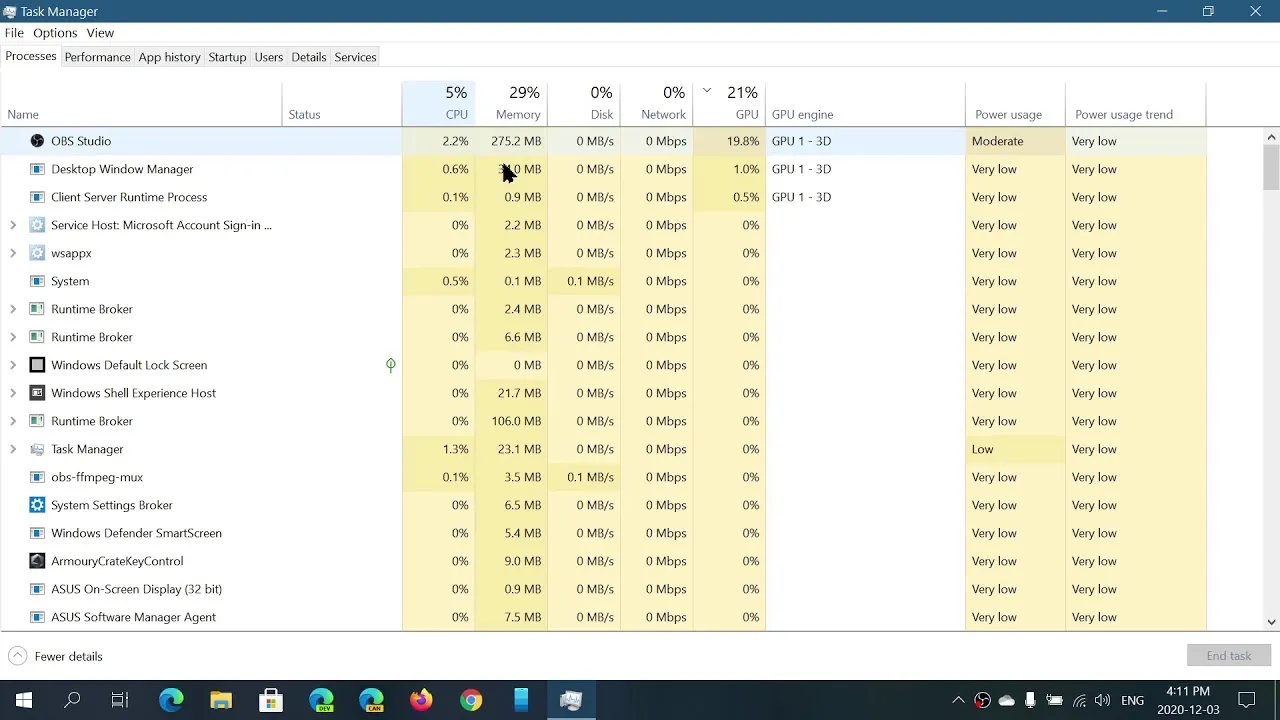

Consumption

Section titled “Consumption”
  • A process can take up several resources, mainly CPU and Memory (RAM)
  • A process can be executed on one ore more CPU cores and thus takes up a percentage of it’s computing power
  • A process can allocate memory in RAM

Process management

Section titled “Process management”
  • The operating system can execute more processes than the number of available cores.
  • This happens by scheduling the CPU computing time and deviding/sharing it between the processes.

Process management (2)

Section titled “Process management (2)”

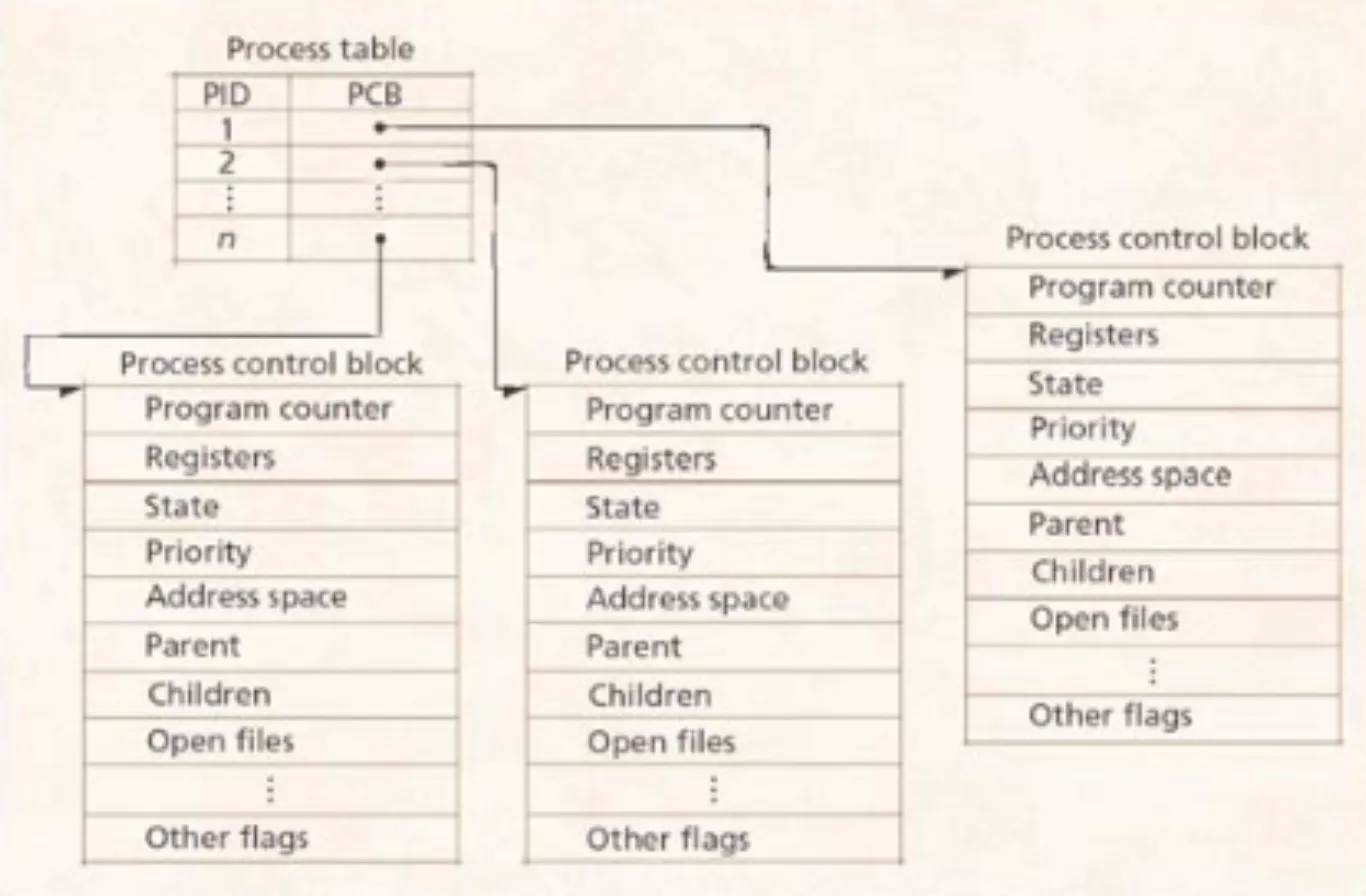

  • The OS manages processes using process tables.
  • They contain the necessary information to control their execution.
  • Entries in a process table are called process control block (PCB).

Process Control Block (PCB)

Section titled “Process Control Block (PCB)”
  • Contains:
    • Process Identification (PID)
    • Resources requested by the process (e.g. files)
    • Area of the memory allocated by the process.
    • Process State
    • Contents of the process register


Process execution

Section titled “Process execution”

A process is executed by the operating system by loading it’s registers from the PCB into the CPU

Process execution (2)

Section titled “Process execution (2)”
  • A process is being executed if it is assigned to a CPU.
  • It’s state will then change to Running.

Process execution (3)

Section titled “Process execution (3)”
  • Processes are being controlled by changing their states
  • We can abstract 3 states:
    • Running
    • Ready
    • Blocked

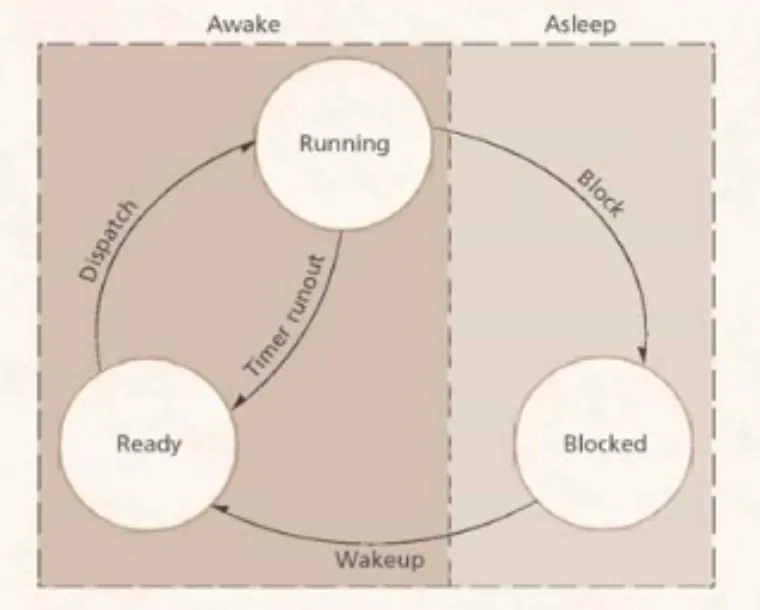

Process states

Section titled “Process states”
  • Running
    • The process is being executed
  • Ready
    • The process waits until the OS assigns a CPU to it
  • Blocked
    • The process needs an external resource
    • Until the resource can be loaded by the OS, the process will remain in the state Blocked.

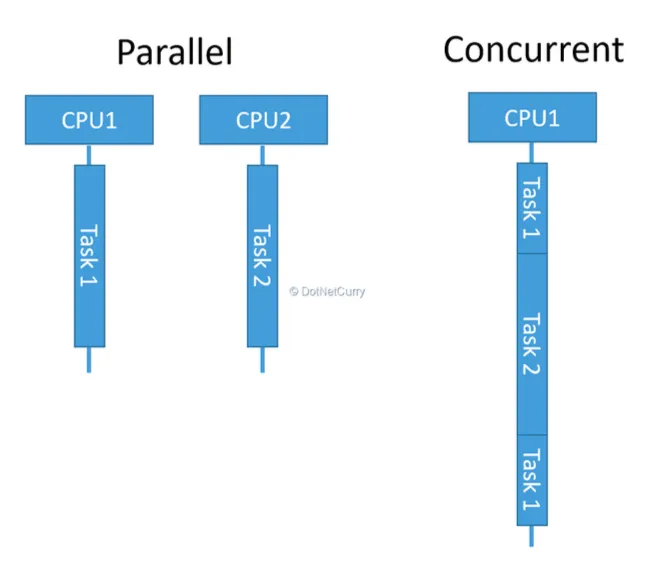

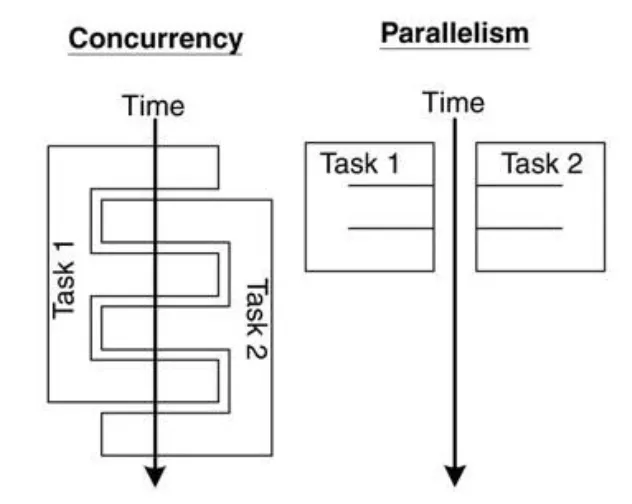

Parallel vs. Concurrent

Section titled “Parallel vs. Concurrent”
  • A system is said to be concurrent if it can support two or more action in progress at the same time.
  • A system is said to be parallel if it can support two or more actions executing simultaneously.



Concurrent

Section titled “Concurrent”
  • Concurrent execution means two or more processes share the same CPU core.
  • The CPU will rotate through the processes giving each processes a certain amount of execution time, before switching to the next process.
  • When switching a process, the data of the process will be written into memory and the content of the next process will be loaded into the register of the CPU.

Concurrent

Section titled “Concurrent”
  • Loading a new process into the CPU is called context switch.
  • A context switch is a time consuming operations. Many context switches will slow down the system.

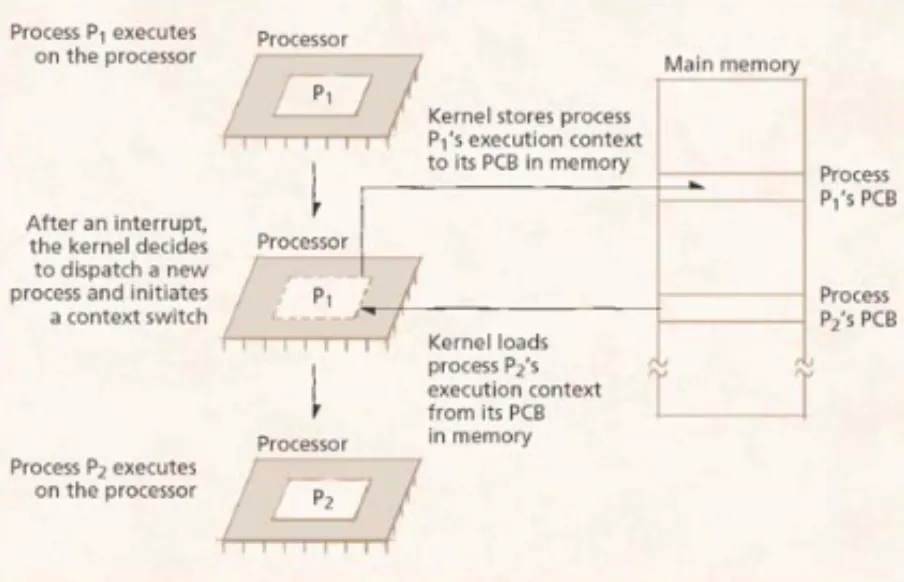

Context Switch

Section titled “Context Switch”


Context Switch (2)

Section titled “Context Switch (2)”
  • A context switch consists of these steps:
    • Updating and saving the current PCB
    • Selecting the next process for execution
    • Restoring and updating the PCB of the new process.
